FX
Light. Simple. Durable.
Superior mounting for
commercial flat roofs
The Pegasus FX fixed-tilt mounting system provides an ultra-lightweight,
durable and trouble
-free solution for commercial flat-roof applications.
durable and trouble
-free solution for commercial flat-roof applications.
POWERFUL FEATURES
Gentle on structures,
strong on winds
Intra-row mounts
Up to 10ft spans and shared intra-row mounts
reduces roof anchors by as much as 40% compared
to competing products
reduces roof anchors by as much as 40% compared
to competing products
Lightweight
As low as 2.2 psf (including modules, inverters, racking and attachments)
Extreme Wind Resistance
Rated to 180 MPH wind
Reduced roof penetrations
64% reduction
Traditional anchored South-tilt:
96 anchors
FX South-tilt:
35 anchors
Fast and flexible
Configure to what works best on your project: Fixed-South,
Fixed-East/West, Fixed-Flush... FX (ergo the name).
Fixed-East/West, Fixed-Flush... FX (ergo the name).
Suitable for TPO, PVC and concrete roofs.

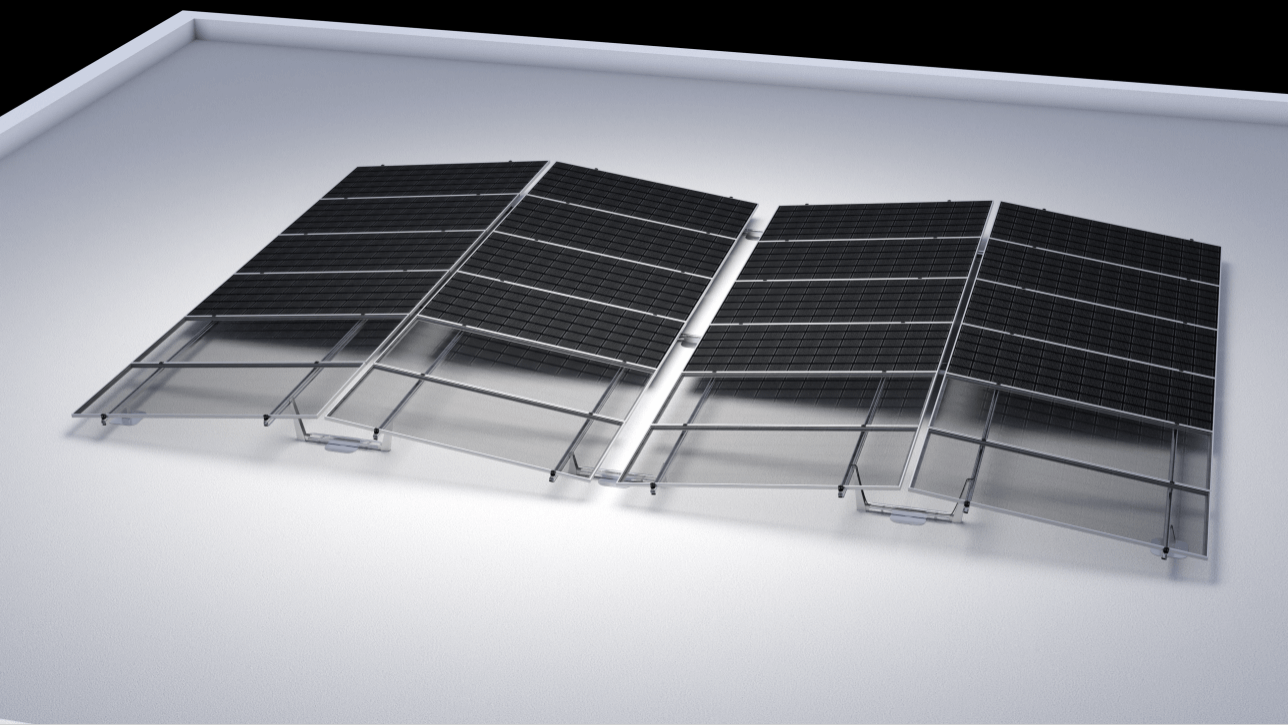

Fixed-East/West

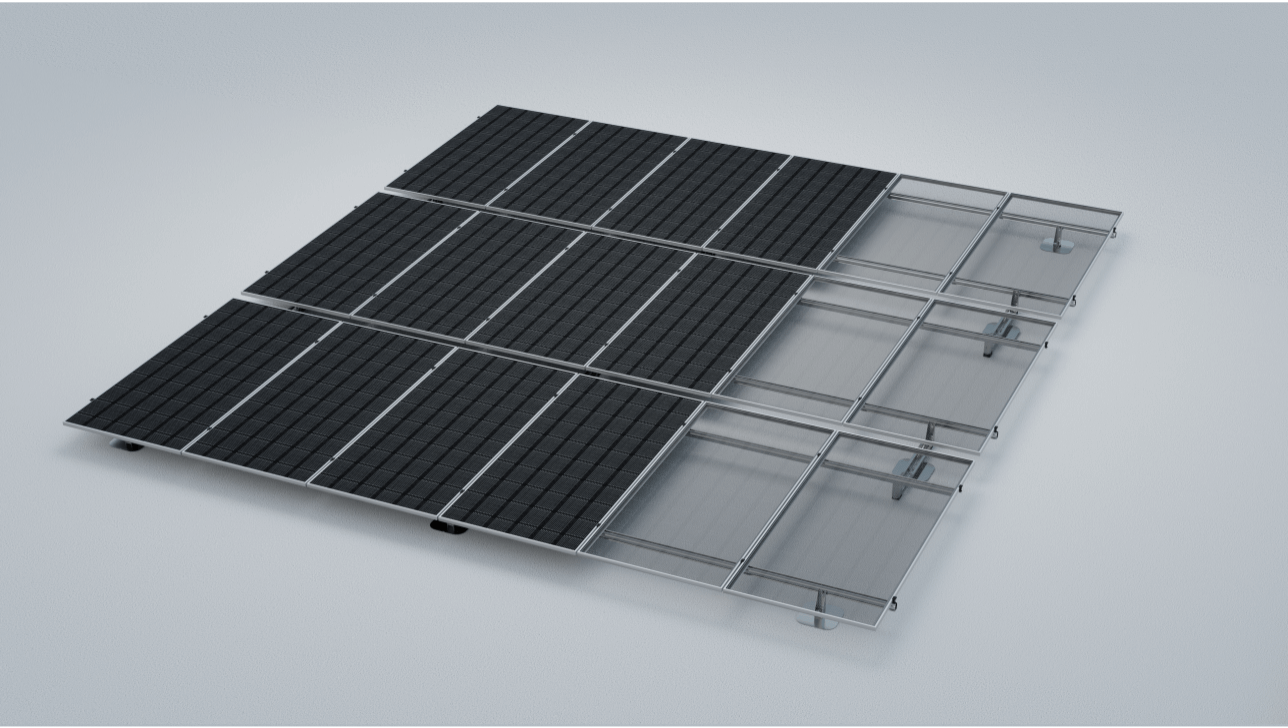

Fixed-Flush

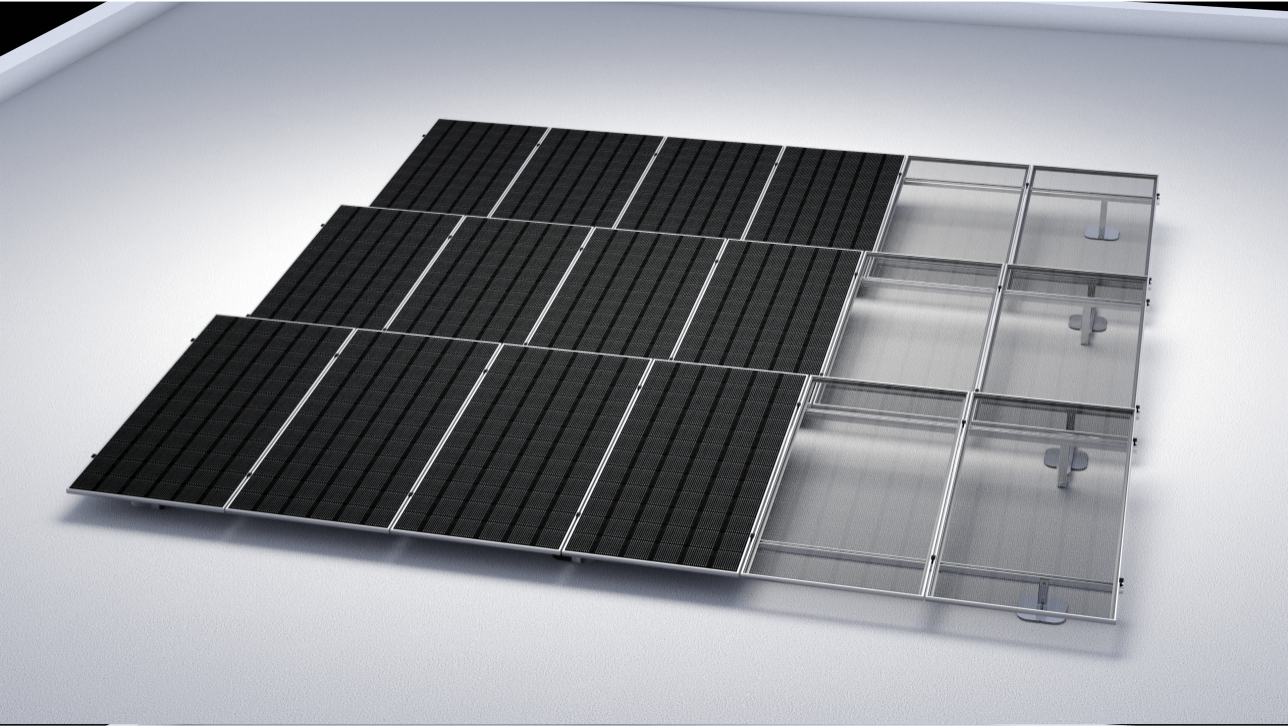

Fixed-South
Secure wire
management
Rails and spanners function as wire trays.
Protects and secures wire throughout the array.
Eliminates loose or dangling wire.
UL3741 Certified.
strength and Durability, Backed by a 25-Year warranty
Built to last
Positive attachment
Rated for up to 180 MPH
winds
winds
Up to 50 psf snow loads
25-year warranty
Build layouts in
Build smarter layouts
Quickly design layouts — including complex layouts with mixed-orientation panels, roof obstructions and multiple arrays — optimized for your project conditions.
Quickly design layouts — including complex layouts with mixed-orientation panels, roof obstructions and multiple arrays — optimized for your project conditions.
Reduce wasted time and materials
Our layout engine automatically calculates rail lengths, splices, and attachment points to minimize scrap and improve efficiency.
Our layout engine automatically calculates rail lengths, splices, and attachment points to minimize scrap and improve efficiency.
Unlock insights with analytics
See estimated savings in materials, roof penetrations, and costs in real time — giving you the data to compare options and make confident decisions.
See estimated savings in materials, roof penetrations, and costs in real time — giving you the data to compare options and make confident decisions.
Technical specifications
SPECIFICATIONS
FX South
FX E-W
FX Flush
Configurations
South Tilt
East-West Tilt
Flush
Module Tilt Angle
7º
7º
0º
Roof Slope
0º to 7º
Wind Speed
Up to 180 MPH
Snow Load
Up to 50 psf
Module Orientation
Optimized for portrait
PSF (Roof Load)
As low as 2.2 psf
Height Above Roof
Minimum 6”
Roof Anchor
3rd Party
Certifications
UL2703, UL3741, LTR-AE-001-2012; ASCE 7-16 & 7-22
Compatible Rail
Pegasus Max Rail
