bondbox

The Secret Agent of System Grounding

Eliminate ground lugs
and copper wire

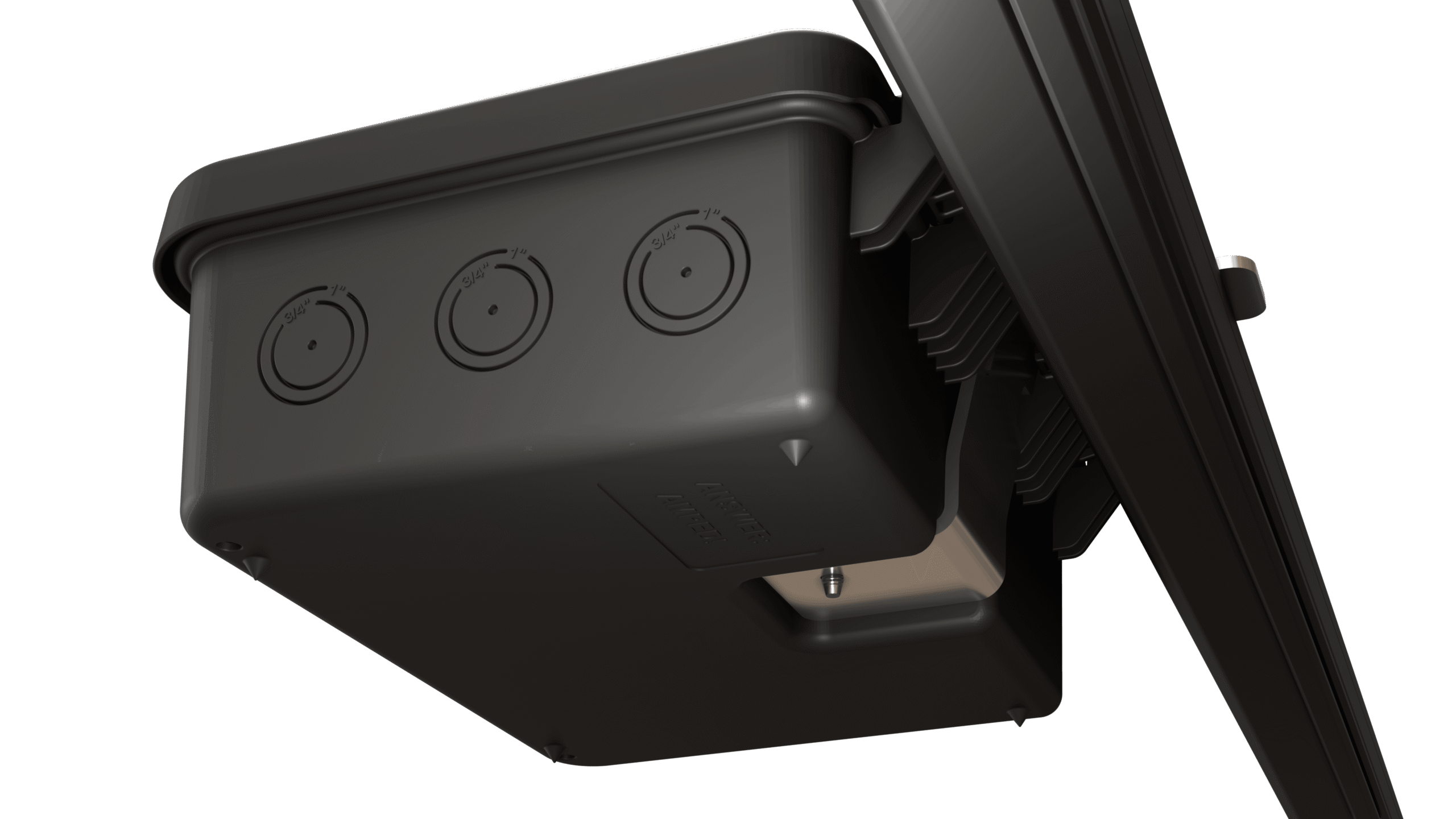

BondBox electrically bonds the rail
to the integrated ground bar. Simply
connect your ground wire to the lug.

Includes additional openings for
grounding multiple arrays.
Connections can be mid-wire.

A thick aluminum bracket secures
BondBox to the rail, providing an
enduring connection that won’t fail.

Stackable for easy transport.
Weep holes for drainage.
No-slip feet for steep roof traction.
Slot for WAGO 221 connectors.

Pre-installed form for site capture
of array details for future reference.

Pegasus 25-Year Warranty

SPECIFICATIONS & DOWNLOADS

Grounding
Integrated ground lug for up to 3 wires

Ground Wire Size
6 AWG to 10 AWG

Enclosure Rating
NEMA 3R

Enclosure Volume
115 cubic inches (1900 cubic centimeters)

Maximum Voltage
999 VDC/240 VAC

Maximum Current
99 AMPS

Certifications
UL2703 and UL1741

Compatible Rail
Pegasus SkipRail

Kit Quantity
1
