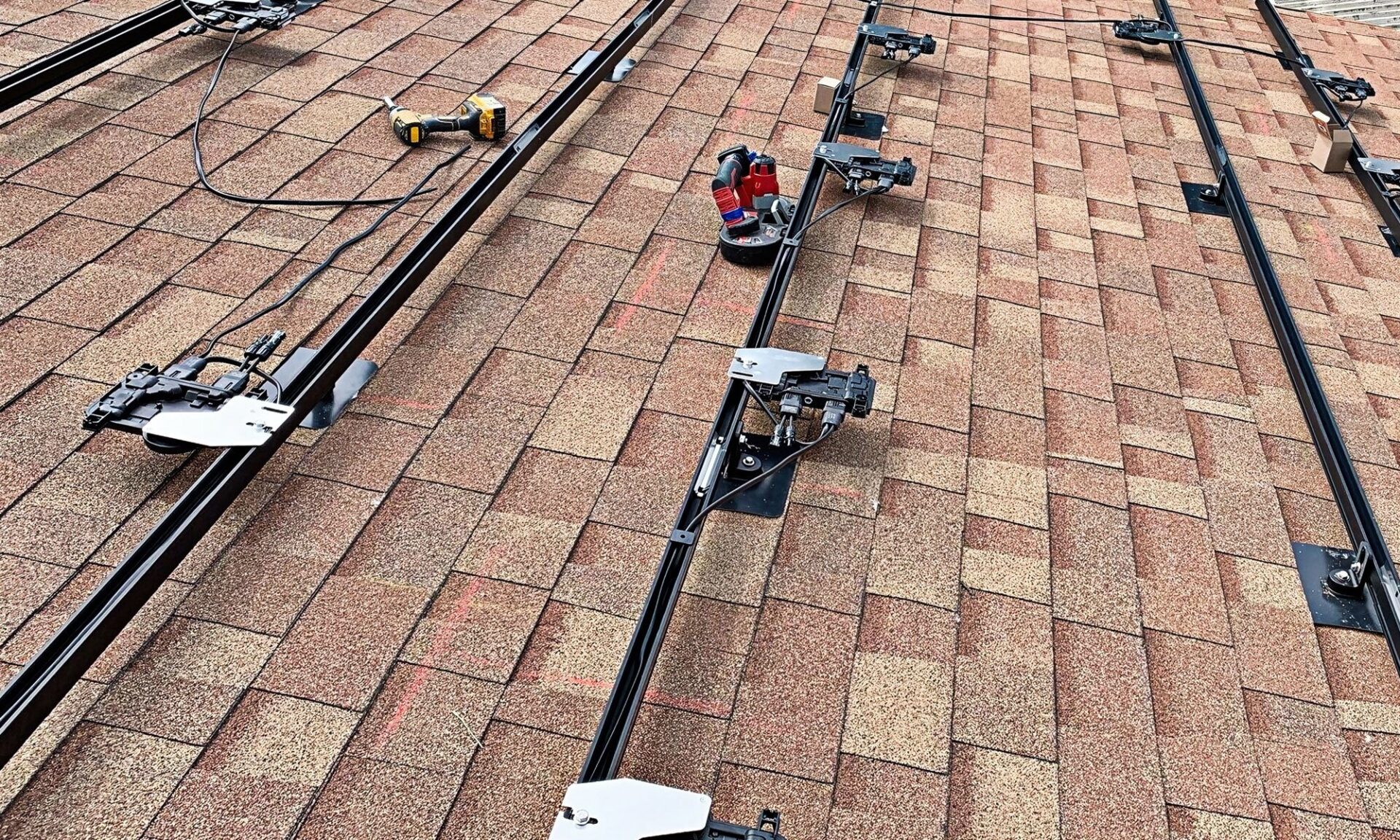

Rail System

Next-level solar mounting

Better at every step

Designed with contractors, Pegasus Rail makes every aspect of solar installation better. From the warehouse to the jobsite, from the box through a lifetime of service: Simple. Fast. Durable.

SEE HOW IT WORKS

The multi-clamp

One clamp for 30-40mm panels, mids and ends.

Clicks and stays in place – even on 90 degree roofs
Won’t turn panels out of alignment when tightening
No interference with wires

SEE MULTI-CLAMP INSTALLATION

No-tool splice

Connect rail instantly. Without tools or limits.

Structural anywhere in rail span
Bonds automatically
No interference with mounts or clamps
No interference with wires

SEE NO TOOL RAIL INSTALLATION

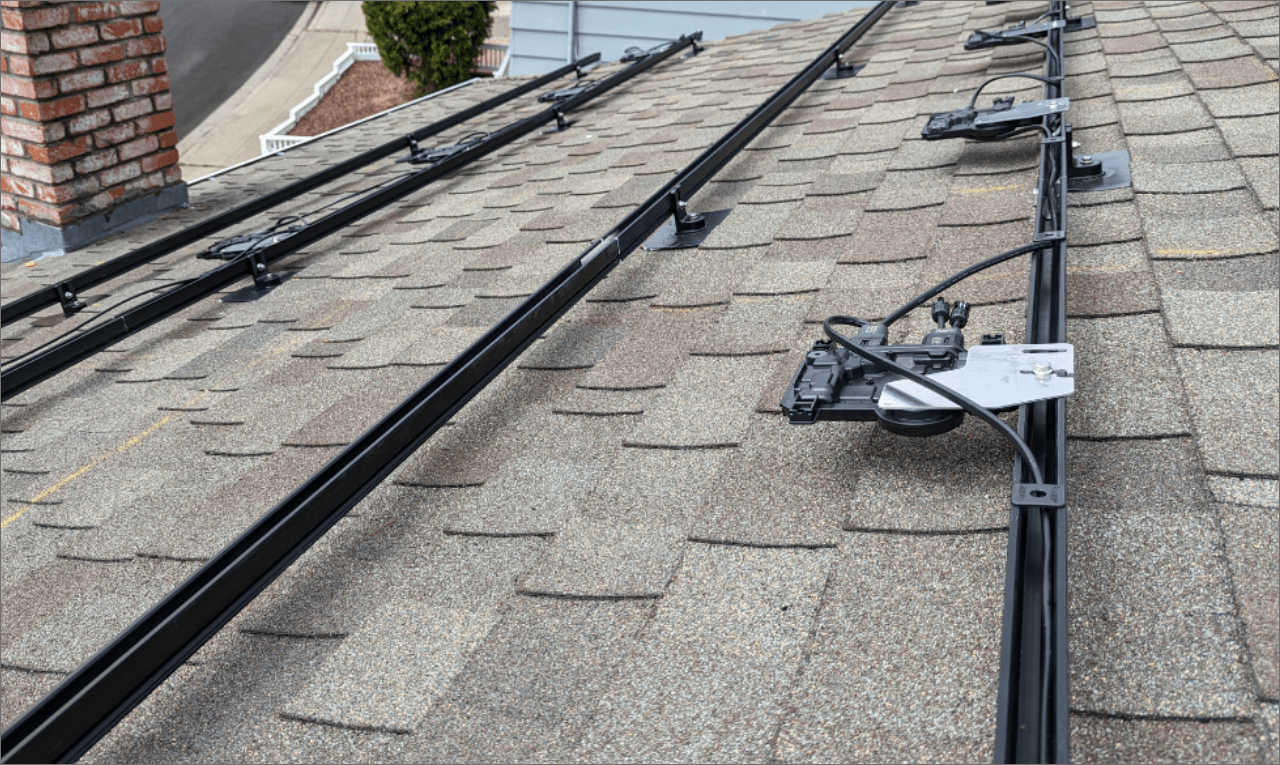

Lifetime wire management

Zip-tie free. A complete system for lifetime solutions.

Wire-tray: Holds MC4 connectors, PV wire and trunk cable
Wire clip: Snaps in place, won’t slip
Cable grip: Stainless steel holds trunk cable and homeruns tight

SEE PEGASUS WIRE MANAGEMENT

Instant bonding

Take charge. Bond arrays in a flash.

North-South Bonding Jumper clicks in place
Bonds panels row-to-row, replacing copper wire
Enables one ground lug per array

SEE BONDING THE WAY IT SHOULD BE

Elevated aesthetics

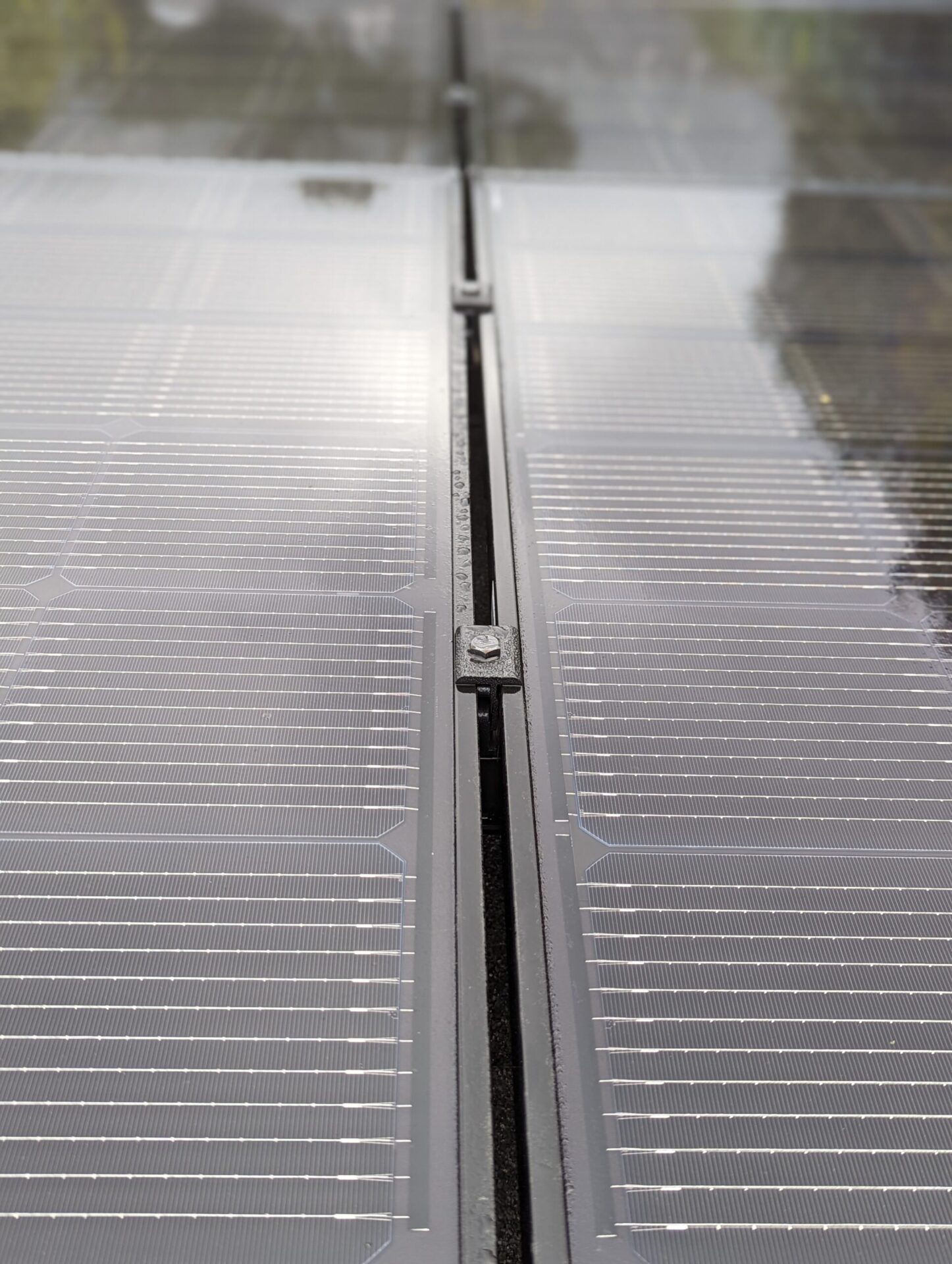

Thinnest module gap in the industry.

All-black finish

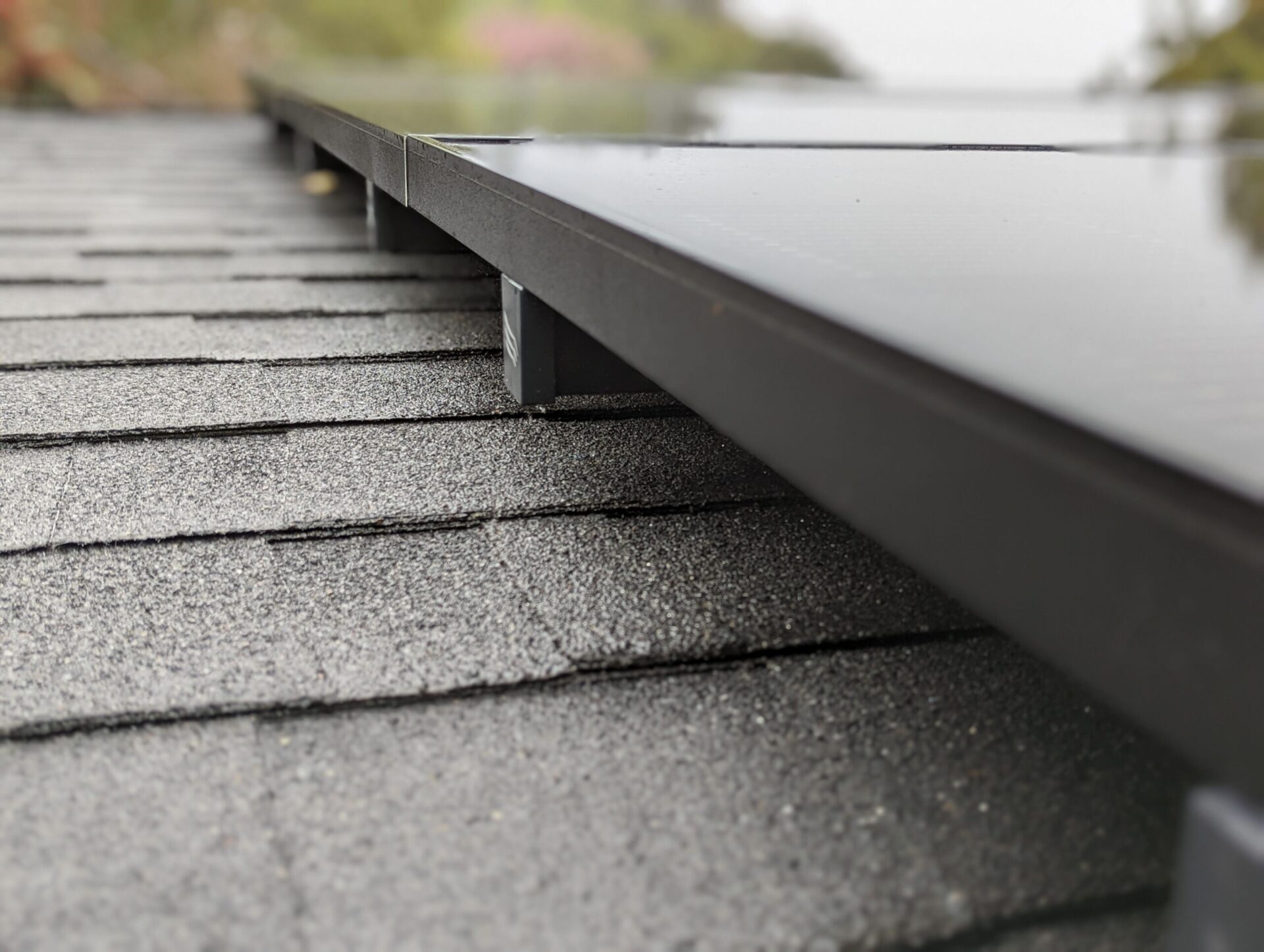

Hidden-end clamp: Premium appearance, one-hand installation
End cap: Covers rail cuts; drains water

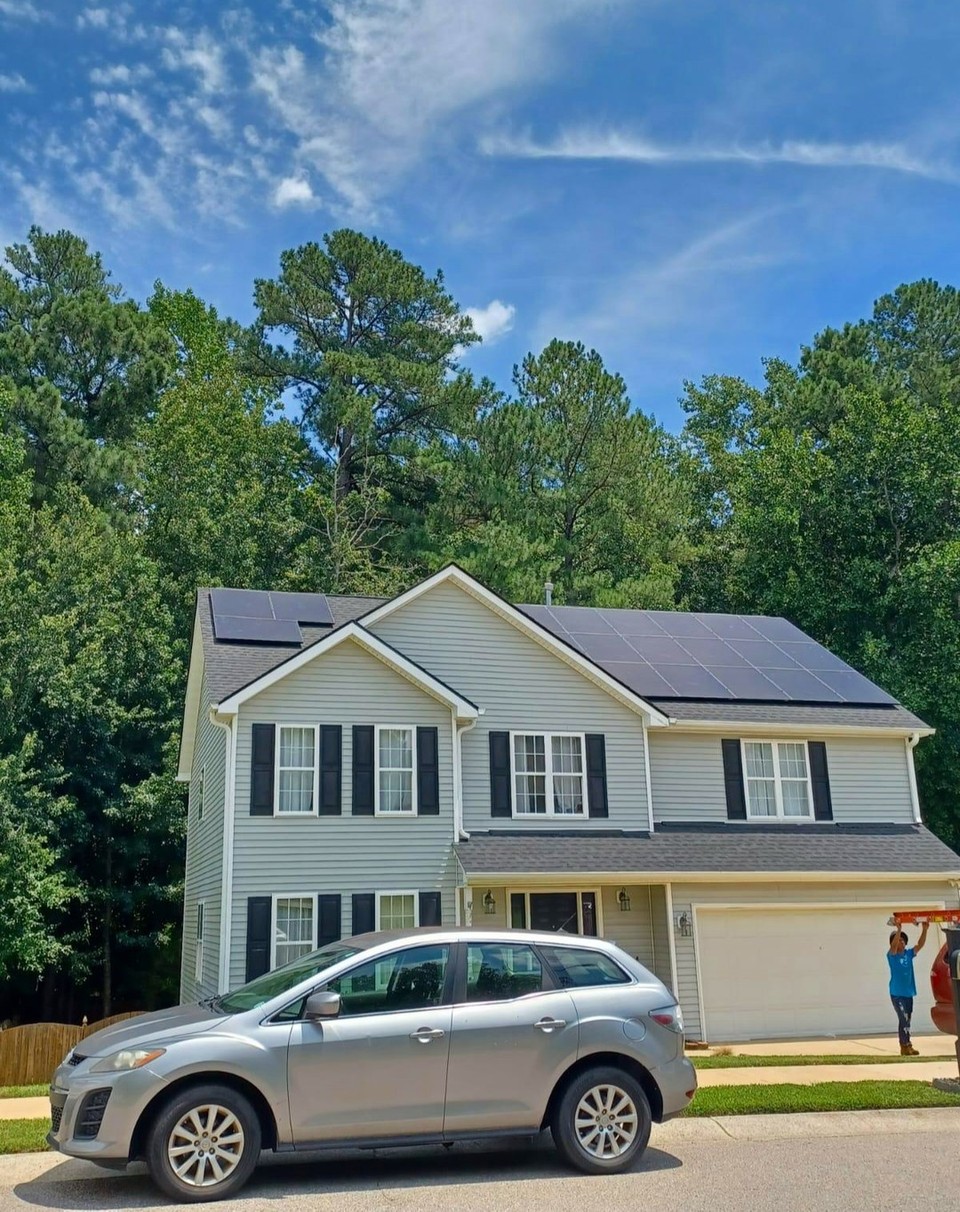

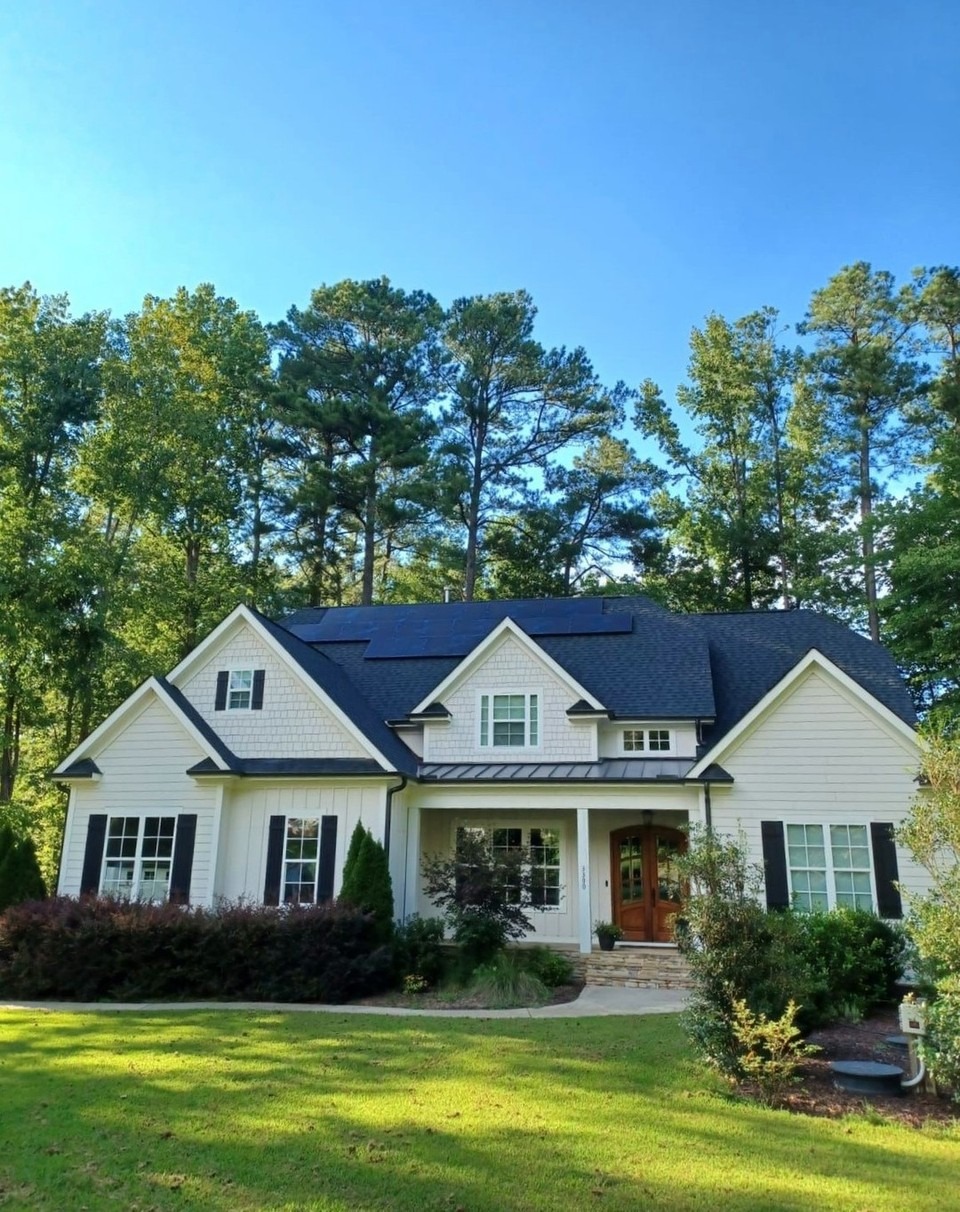

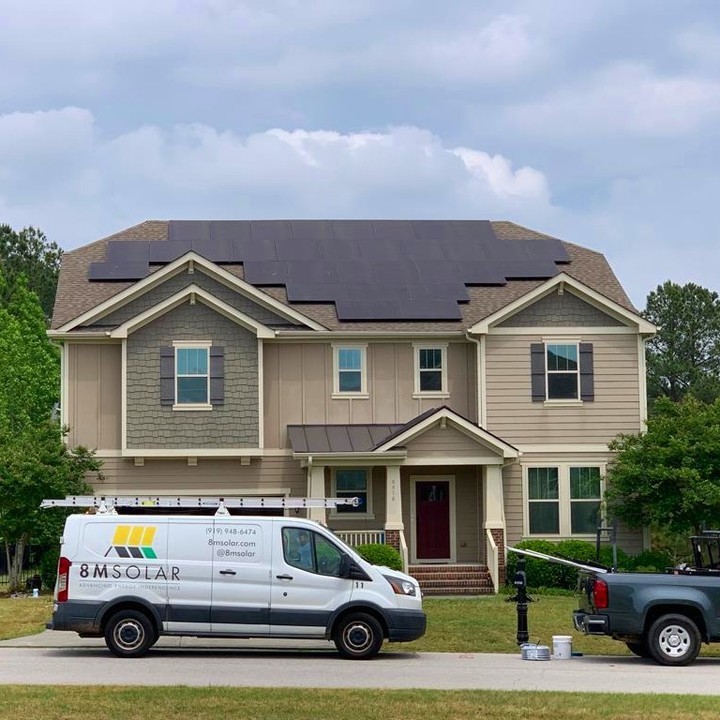

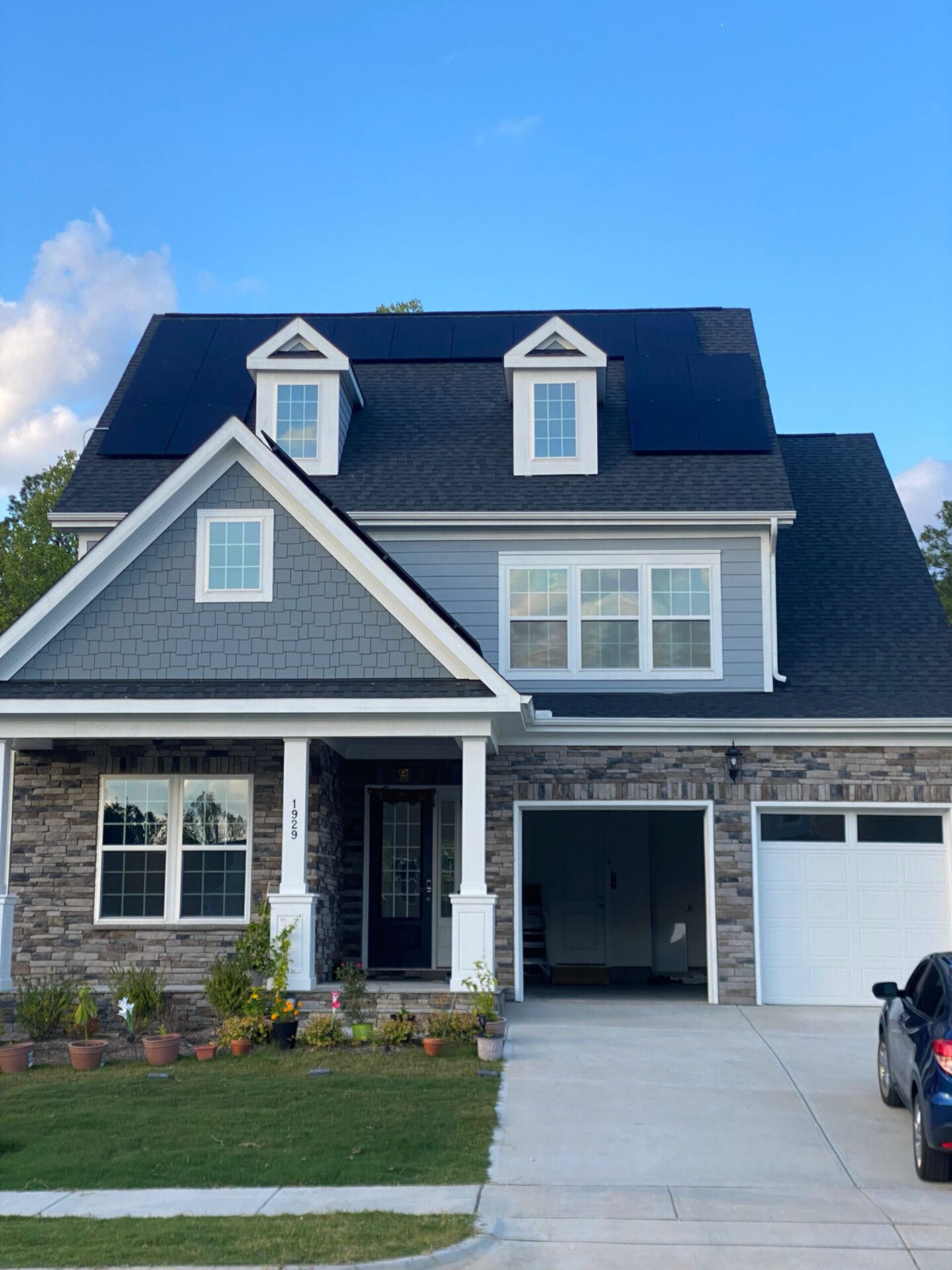

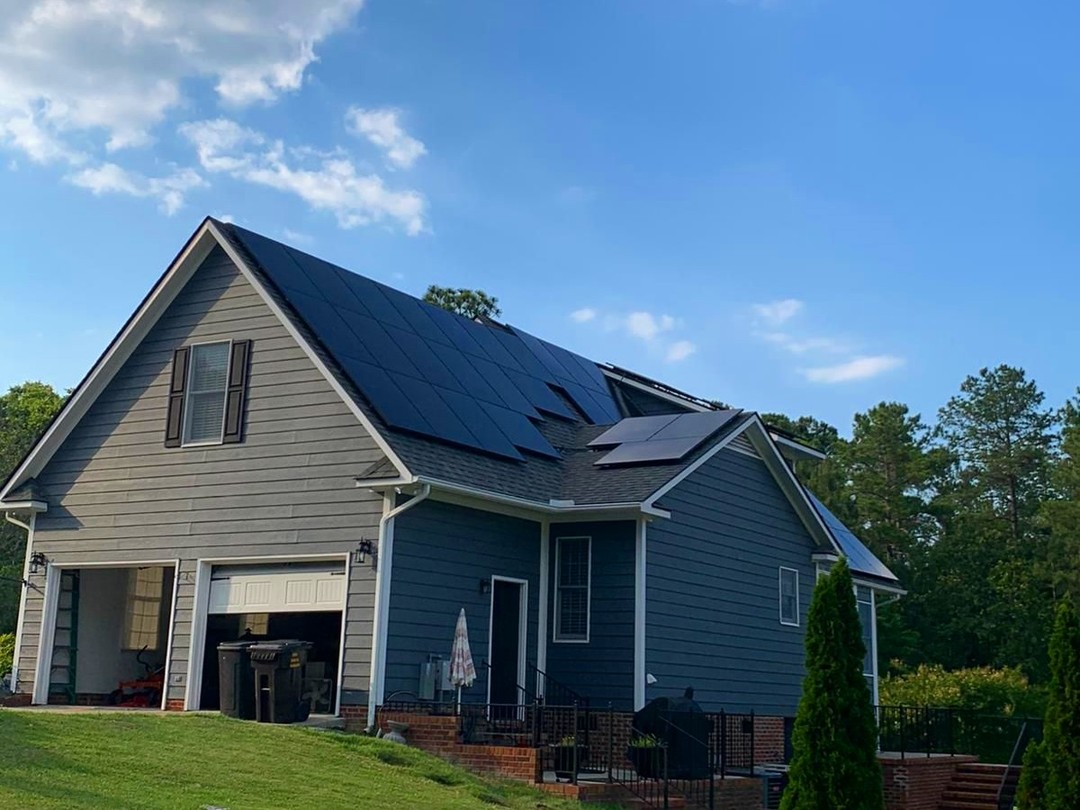

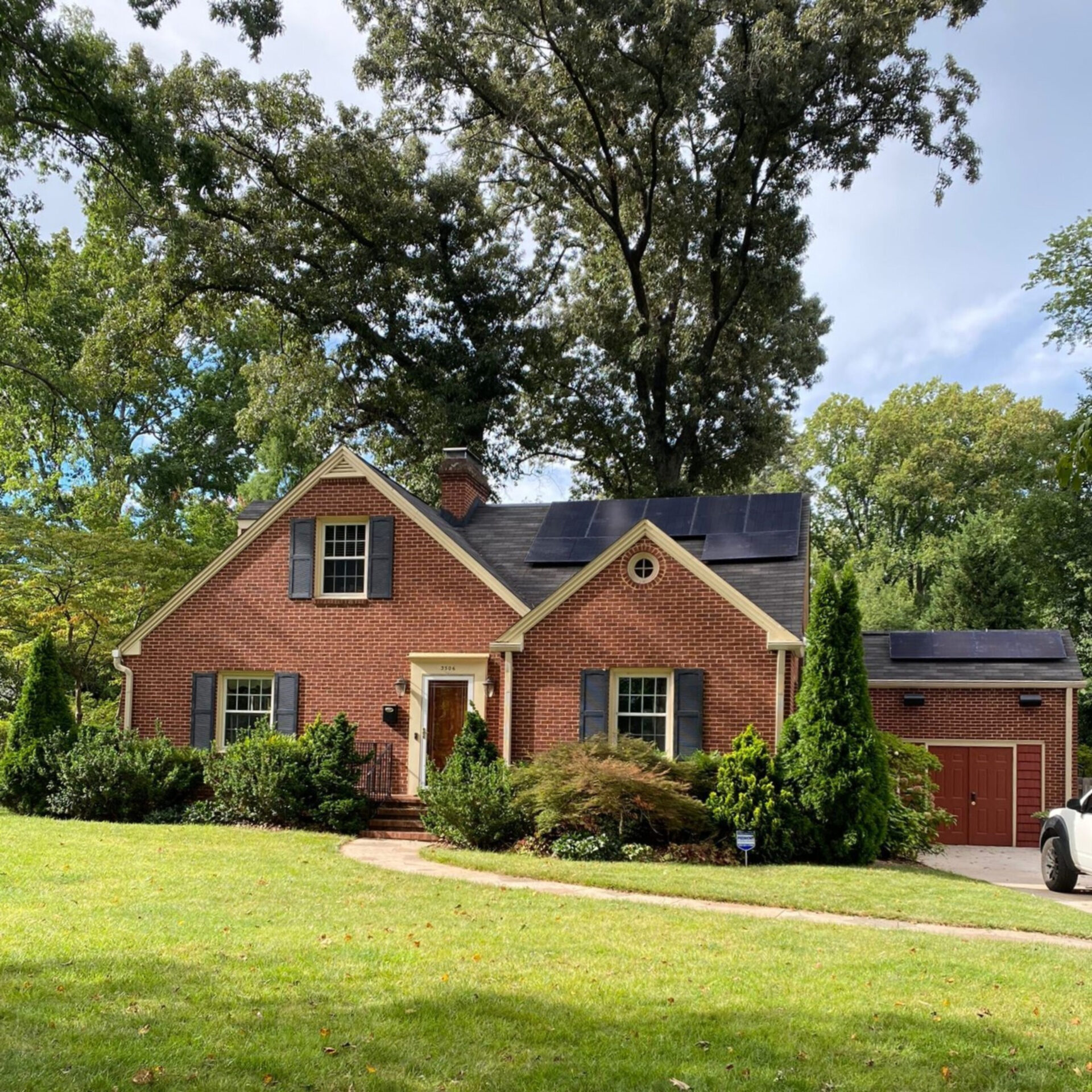

SEE EXAMPLE INSTALLATIONS

Logistics & warehousing savings

Easy to source, store, move, install.

Canadian availability and delivery: Contact our team for current stock and lead times.
7’ rail: Transport on small trucks
Smart packaging: First-item-out-first-needed
No single use plastic, 100% recyclable FSC packaging
Reliable: 25-year warranty

GET STARTED

TECHNICAL SPECIFICATIONS

Roof Type
Any

Bonding & Grounding Certifications
UL2703, Edition 1 listed as reusable
LTR-AE-001-2012

Fire Rating
Class A with Type 1, 2, 29, & 30 PV modules
on any slope roof

Compatible Mounts
Most

Compatible PV Modules
Most PV modules with 30 to 40 mm frames

Assembly Tools
1/2″ deep socket for all components

Rail Lengths and Finishes
7′ and 14′ in Mill and Black

Splice Type
Structural and Bonding, no-tool

Bonding
Integrated Bonding, including row-to-row

Ground Lug
Conforms to UL467; compatible with 6 & 8 gauge bare wire copper
