InstaFlash

Even the New Guy Can Do It

Installing on comp shingle has never been easier,
faster or more secure.

Contact Pegasus Solar Canada for the warranty and leakproof program terms applicable to your purchase.

With one screw, InstaFlash automatically bonds to comp roofs, seals missed pilot holes, and is watertight for life.

No mess. No guessing. No effort.

Request a sample

With a factory-installed, non-hardening sealant, you’ll never worry if the crew properly sealed every mount.
It’s automatic.

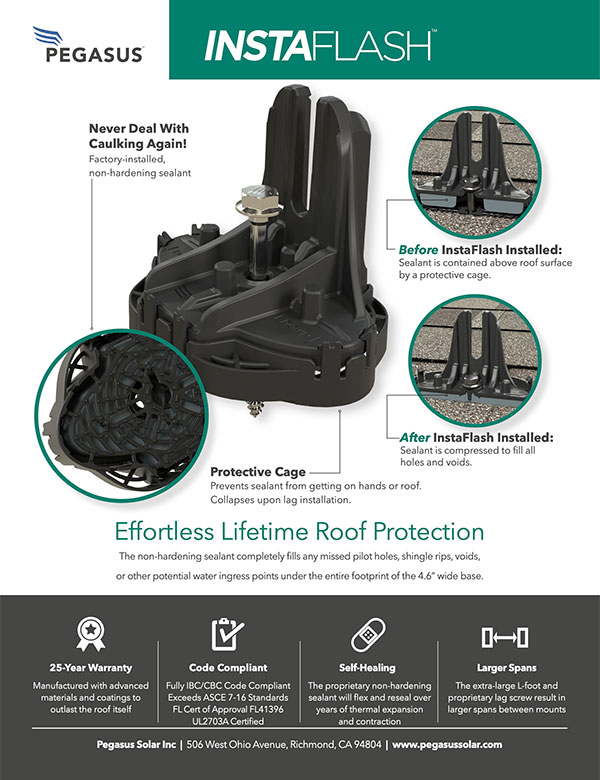

Protective cage directs sealant exactly
where it needs to go – keeps your hands
and tools clean.

Request a sample

Non-hardening sealant completely fills and permanently seals shingle overlaps, butt joints and missed pilot holes.

Request a sample

InstaFlash is beyond simple to install.
Even your newest crew member can work
like a pro.

InstaFlash can be installed in freezing temperatures or extreme heat (−18°C to 121°C (0°F to 250°F)). Even in pouring rain.

Install with confidence. InstaFlash is watertight in the most extreme conditions, from High Velocity Hurricane Zones to shredding on the Bay

TECHNICAL SPECIFICATIONS & DOWNLOADS

Attachment Type
Rafter Attached

Roof Type
Sloped Roof: Composition Shingle, Rolled Asphalt | Flat roof: Modified Bitumen Roof, Built-Up Roof

Sealant Application
Factory Installed

Installation Temperature
−18°C to 77°C (0°F to 170°F)

Cure Time
Instantly Waterproof; Non-hardening

Service Temperature
−40°C to 91°C (-40°F to 195°F)

Install Application
Most Railed Systems, Pegasus Tilt Leg Kit

Kit Quantity
24

Boxes per Pallet
36
